The best built wood boiler in the industry, our Econoburn™
will save you money...guaranteed! Our Econoburn™ wood boiler is uniquely built to rigorous ISO 9001-2000 standards for unbeatable quality, reliability, ease of use and fuel efficiency.
50 years of metal fabricating experience, and state of the art manufacturing technology, allows us to deliver a superior wood fired boiler product,
custom designed and made in the U.S.A.
Your Econoburn™ wood boiler can easily be installed with your existing commercial or residential heating system to provide you with the
utmost in convenience, fuel efficiency and substantial savings.
If you have special requirements, the Econoburn™ wood boiler can be
custom engineered and installed to your specifications.

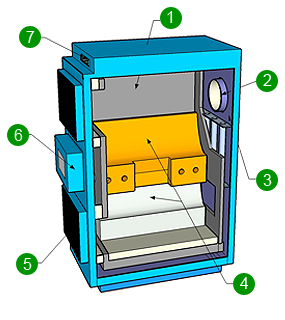

Econoburn™ Wood Boiler
main features...
1. 1/4" Steel plate Construction
Our wood boilers are constructed of 1/4 inch ASME grade A36 carbon steel plate throughout, most seams double welded for strength and durability for excellent temperature and corrosion resistance.
2. Clean Burning & Environmentally Friendly
High temperature combustion results in almost no creosote or ash. With virtually no exhaust gases, our wood boilers ease the burden on the environment.
3. Full Water Jacket Heat Exchanger
High volume water jacket means faster heat up, and greater output.
4. Custom Made Refractory
High technology custom made gasification firing chamber efficiently retains its heat. Even when the fire itself burns down, the refractory maintains it's temperature, and with the introduction of forced air re ignites fresh wood.
5. Easy Clean Ash Chamber
Front opening ash chamber makes occasional maintenance easy.
6. Heavy Duty Draft Induction
Reliable industrial grade fan forces air into the gasification chamber producing ultra high efficiency combustion and heat transfer.
7. Proven Draft Combustion Control Units
We utilize industrial grade touch pad control units to optimize the wood boiler's combustion efficiency.
1. 1/4" Steel plate ConstructionOur wood boilers are constructed of 1/4 inch ASME grade A36 carbon steel plate throughout, most seams double welded for strength and durability for excellent temperature and corrosion resistance.
2. Clean Burning & Environmentally Friendly
High temperature combustion results in almost no creosote or ash. With virtually no exhaust gases, our wood boilers ease the burden on the environment.
3. Full Water Jacket Heat Exchanger
High volume water jacket means faster heat up, and greater output.
4. Custom Made Refractory
High technology custom made gasification firing chamber efficiently retains its heat. Even when the fire itself burns down, the refractory maintains it's temperature, and with the introduction of forced air re ignites fresh wood.
5. Easy Clean Ash Chamber
Front opening ash chamber makes occasional maintenance easy.
6. Heavy Duty Draft Induction
Reliable industrial grade fan forces air into the gasification chamber producing ultra high efficiency combustion and heat transfer.
7. Proven Draft Combustion Control Units
We utilize industrial grade touch pad control units to optimize the wood boiler's combustion efficiency.
Models
and specifications...Want to heat your home, and connect a pool or hot tub as well?
Need to heat your warehouse, and supply your shop with plenty of hot water?
Whether your present heating system utilizes radiant floor, forced air, or traditional hot water
radiators, your Econoburn™ wood boiler can be integrated to supply you with a money saving
alternative to your existing equipment.
Econoburn™ wood boilers are available in models ranging from 100,000 to 1,000,000 Btu's.
Whatever your needs, we have the right size Econoburn™ boiler for you.
| Econoburn™ Boiler Model | EBW-100 | EBW-150 | EBW-200 | EBW-300 | EBWC-500 | EBWC-1000 |
|---|---|---|---|---|---|---|
| Btu's per Hour (Maximum) | 100,000 | 150,000 | 200,000 | 300,000 | 500,000 | 1,000,000 |
| Water Capacity (Gallons) | 28 | 33 | 44 | 80 | 118 | 132 |
| Firebox Volume (Cubic Feet) | 5.44 | 6.19 | 8.05 | 11.94 | 22.06 | 32.95 |
| Log Length (Maximum) | 21" | 21" | 21" | 23" | 33" | 46" |
| Door Opening | 12" X 15" | 12" X 15.75" | 12" X 20.5" | 12" X 23.5" | 13" X 32" | 13" X 32" |
| Height | 62.5" | 66" | 66.5" | 72.25" | 72.6" | 76" |
| Width | 25.5" | 26.8" | 31.5" | 37.4" | 42.1" | 42.1" |
| Depth | 44" | 44" | 44" | 47" | 65.9" | 79.2" |
| Flue Size | 8" | 8" | 8" | 8" | 12" | 12" |
| Weight (Pounds) | 1440 | 1550 | 1860 | 2395 | 3220 | 4360 |
* Specifications subject to change without notice
Installation accessories...
From heat exchangers for residential or commercial applications, to thermal storage tanks, as well as heating accessories for pools and hot tubs, we can supply almost everything you need to simplify the installation of your Econoburn™ wood boiler.
If you require high volumes of heated water, we can fabricate any size of reservoir tank you need. For safely venting your new Econoburn™ wood boiler we can provide industry standard triple walled stainless steel stovepipe, and connectors.
Shown below are several of our most popular accessories. Local building codes should be reviewed before
installing Econoburn™ wood boilers and accessories.
* Hover over thumbnails to see larger images.
Alternative
Fuel Boilers proudly offers the STSS
line of thermal storage tanks to maximize the heating benefits of your Econoburn™
boiler.Thermal storage allows you to store excess energy from the boiler that is not immediately needed to heat your home for use later, on demand. These highly efficient tanks are well insulated and virtually maintenance free.
With sizes ranging from 500 to 1500 gallons, we can match the storage tank to your Econoburn™ boiler to best fit your heating needs.
Need more information? Click here to view or download our Thermal Storage brochure.
Custom orders and other products...
Alternative Fuel Boilers, as a division of Dunkirk Metal products, can supply custom metal fabricating for your heating,
and other building projects. Please contact our sales representatives with your project specifications, and requirements.
Periodically, refurbished wood boilers are available at discount prices. We also supply custom replacement refractories for most wood boilers.
Your new Econoburn™ wood boiler is warranted for a full 5 year period against manufacturer's defects. Alternative Fuel Boilers extends a 6 month warranty on your complete gasification heating package. All other purchased components will have their manufacturers' warranties honored.
Have any other questions about Econoburn™
boilers? Click here
to explore our F.A.Q. section.
